Land00054.pngUsing Plant List Data in Vectorworks Landmark

Plant list information is available to plant definitions from the Plant Data tab.

To use plant list data in a plant definition:

1. Create the plant definition as described in Creating Plant Definitions.

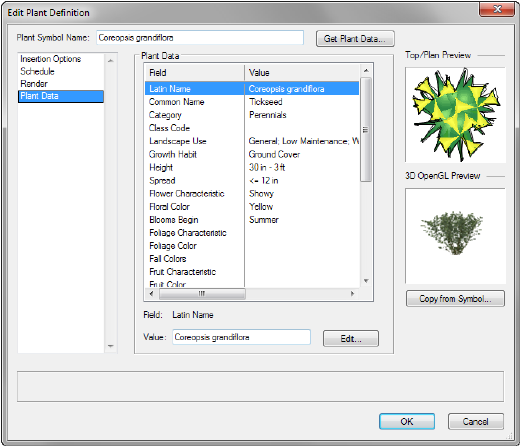

2. In the Edit Plant Definition dialog box, click Get Plant Data.

The Get Plant Data dialog box opens.


3. Select the plant name and data to include in the plant definition, and click OK.

4. The Plant Data tab displays the data from the plant database.


~~~~~~~~~~~~~~~~~~~~~~~~~
